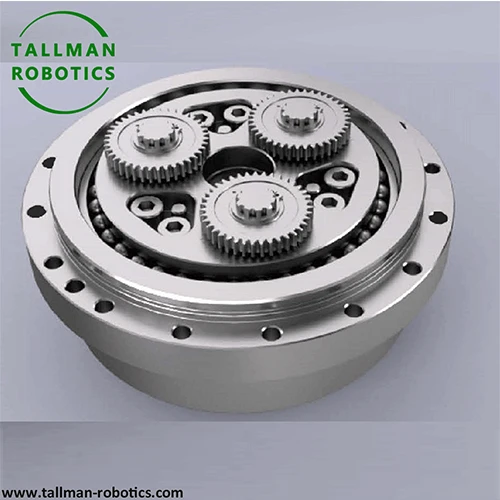

Solid Shaft RV Reducer ndi mtundu wa RV chochepetsera wopangidwa ndi shaft yolimba yotulutsa, yomwe ndi mtundu wamba wa RV reducer (cycloidal pinwheel reducer) mosiyana kwambiri ndi Hollow Shaft RV reducer. Imasunganso zabwino zake zochepetsera ma RV monga kulondola kwambiri komanso kusasunthika, pomwe ikuwonetsa phindu lapadera pamawonekedwe apadera ogwiritsira ntchito chifukwa cha kapangidwe kake ka axial.
Solid Shaft RV Reducer imasunganso mawonekedwe apakati a RV reducer (wopangidwa ndi makina ochepetsera zida za pulaneti ndi makina ochepetsera ma cycloidal pinwheel), koma amatengera mapangidwe olimba a shaft kumapeto kwake: Shaft yotulutsa ndi yolimba yopangidwa yonse, yopanda pakati kupyola-dzenje. Mapeto a shaft nthawi zambiri amapangidwa ndi keyway, dzenje lopangidwa ndi ulusi kapena flange pamwamba, zomwe zimagwiritsidwa ntchito polumikizana molunjika ndi katundu (monga zolumikizira, magiya, ma sprockets, ndi zina). Mapeto olowera amatha kulumikizidwa ndi ma servo motors kapena magwero ena amagetsi kudzera kulumikiza kwa flange, kulumikizana kwa shaft, ndi njira zina malinga ndi kapangidwe kake kuti zitsimikizire kukhazikika kwa kufalikira kwa mphamvu. Kapangidwe kake ka Solid Shaft RV Reducer ndi yaying'ono, yolondola kwambiri pamagetsi amkati. Imafika potulutsa ma torque ambiri kudzera-kutsika masitepe ambiri kwinaku ikusunga zolakwika zobwerera (nthawi zambiri Zochepera kapena zofanana ndi 1 arc miniti).
Kodi pali kusiyana kotani pakati pa hollow shaft RV reducer?
|
Kuyerekeza Dimension |
Solid Shaft RV Reducer |
Hollow Shaft RV Reducer |
|
Mapangidwe a shaft yotulutsa |
Zolimba, palibe pakati pa-bowo |
Bowo, -pakatikati (lolola kuthyolako/conduit) |
|
Katundu wonyamula katundu |
Kuchuluka kwamphamvu kwa torsional ndi mphamvu yama radial katundu |
Pang'ono pang'ono (chifukwa cha kufooka kwa tsinde lina lamphamvu ndi kapangidwe ka dzenje) |
|
Zofunikira pa Wiring |
Sichithandizira mawaya amkati / ngalande, imafunikira mawaya akunja |
Imathandizira mawaya amkati / ngalande, imakulitsa masanjidwe apakati |
|
Zochitika zoyenera |
Zosasunthika zopatsirana popanda zofunikira zama waya komanso katundu wambiri |
Zida zolondola zomwe zimafuna mawaya amkati ndi malo ophatikizika |
Pano Patsamba lino, tikuyambitsa SN serial RV Reducers kuchokera ku TallMan Robotic, omwe ndi otsogola kwambiri opanga ma RV Gearboxes, mudzawona mapepala, zithunzi zopanga, makanema motere:
|
RV-N Series: |
|
|
|
|
|
|
||||
Komanso Mwalandiridwa kuti muwonere mapulojekiti ena kapena kuchezera makanema athu ndi YouTube: https://www.youtube.com/@tallmanrobotics
Kodi maubwino a Solid Shaft RV Reducer ndi ati?
|
Kusasunthika komanso kulemedwa-kuchuluka |
Ma shaft olimba amakhala ndi mphamvu zopindika kwambiri komanso amanyamula ma radial/axial{0}}kuchuluka kwa ma radial/axial{0}}kutengera mphamvu kuyerekeza ndi ma shaft opanda kanthu, ndipo amatha kupirira kukhathamira kwakukulu kwa katundu ndi torque yosasunthika, zomwe zimapangitsa kuti zikhale zoyenera kuchitiramo zinthu zomwe zimafunikira kwambiri pakulimba kwa shaft. |
|
Kulondola kokhazikika kufalitsa |
Kupititsa patsogolo ubwino wa zida zochepetsera ma RV, -kutumiza kolondola kwambiri (ndi kubwereza malo olondola mpaka ± 0.01mm) kumatheka kudzera m'makina olondola a zida ndi njira zophatikizira, ndikuwonongeka pang'ono pakatha ntchito{2}}kwanthawi yayitali. |
|
unsembe kusinthasintha |
Mapangidwe olimba a shaft amatha kutengera njira zosiyanasiyana zolumikizira katundu (monga kulumikizana kwa kiyi, kulumikizana kwa manja okulitsa, kulumikizana kwa flange, ndi zina), osaganizira zofunikira za waya kapena ngalande. Kuyikapo ndikosavuta komanso koyenera pazida zomwe sizimakhudza zofunikira za mawaya amkati pamakonzedwe apakati. |
|
Kudalirika kwakukulu |
Shaft yolimba yopanda dzenje lapakati imachepetsa kupsinjika kwa thupi la shaft, ndikuphatikizidwa ndi kukana kwamphamvu kwa RV reducer yokha, imathabe kugwira ntchito mokhazikika pansi pazovuta zogwirira ntchito monga kugwedezeka ndi fumbi. |
Solid Shaft RV Reducer, chifukwa cha kulimba kwake komanso kulemedwa mwamphamvu-kuchuluka kwake, imagwiritsidwa ntchito makamaka m'malo osafunikira ulusi wamkati / ulusi, komanso zofunika kwambiri pakusasunthika komanso kuchuluka kwa katundu.
|
Zosagwirizana ndi maloboti amakampani |
Mwachitsanzo, makina ozungulira a robot base ndi shaft ya lamba wotumizira amafunika kutumiza torque yayikulu popanda mawaya ovuta, ndipo ma shaft olimba amatha kuonetsetsa kuti kufalikira kukhazikika. |
|
Zida zamakina a CNC ndi zida zamakina olondola |
Amagwiritsidwa ntchito poyendetsa spindle, kufalitsa shaft shaft, ndi zina zambiri, kukhazikika kwamitengo yolimba kumatha kuchepetsa kugwedezeka panthawi yodula ndikuwongolera makina olondola. |
|
Heavy duty automation zida |
Mwachitsanzo, makina opiringirira ndi heavy-duty conveyor drive system of metallurgical machines ayenera kupirira katundu wamkulu ndi kukhudzidwa, ndipo katundu wamphamvu-kuthekera kwa ma shaft olimba akhoza kukwaniritsa zofunikira. |
|
Zida zatsopano zamagetsi |
Kuyendetsa kwamphamvu kwa zida zamagetsi zamagetsi ndi njira yozungulira yamakina otsata ma photovoltaic kumafunikira kudalirika kwambiri komanso kukana kunyamula katundu m'malo ovuta akunja. |
|
Makina Omanga |
Kagwiridwe kake ka zofukula zazing'ono ndi zida zotumizira zamakina opangidwa ndi ma hydraulic ziyenera kupirira-kugwedezeka kwakukulu komanso kutulutsa kwa torque yayikulu. |
Solid Shaft RV Reducer ndi gawo lapamwamba-lotumiza mwachangu lomwe lili ndi mbali yayikulu ya shaft yotulutsa yolimba. Imayang'ana kwambiri kulimba kwambiri, kunyamula katundu wamphamvu komanso kutumiza kosasunthika. Ndi oyenera zochitika mafakitale popanda zofunika mawaya mkati ndi mkulu katundu mphamvu. Imakwaniritsa chocheperako chocheperako cha RV ndipo chimakwirira magawo ogwiritsira ntchito ndi zofunikira zosiyanasiyana zotumizira.
